PDA's off-the-shelf offerings are suitable for drop-in or prototyping
while we design a custom solution for your product.
Our touch modules have been the foundation of Microchip's
eval kits since the introduction of the maXTouch™
Many of the touch modules below are also available in other configurations
(sensor only, sensor + cover glass, etc.).
Contact PDA for more info.

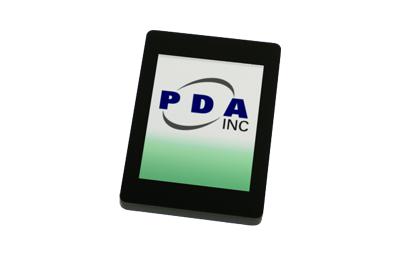

2.8in Touch Module for use with Microchip
Xplained kits or
custom hosts with the necessary interfaces and I/O to communicate with the
touch controller and display hardware.
This module is part of the Microchip
mXT143E Xplained kit.
2.8in Touch Module with ATXMEGA256A3BU on-board, a stand-alone version of the TM2800 module.
It consolidates the functionality of the
XMEGA-A3BU Xplained and
mXT143E Xplained kits into a single, stand-alone kit.
The internal flash memory of the MCU offers the use-case of a
"UI controller" which can be added to an existing design.
TM2801 ASF Multitouch Demo -
Example TM2801 project based on the ASF MultiTouch Demo. This project consists of the
mXT143E Xplained / XMEGA-A3BU Xplained MultiTouch demo example project with some minor
tweaks to target the TM2801 hardware instead of the TM2800.
